ASP.NET网页进行交互示例



官方网站为本节内容提供了示例,下载地址:
http://www.foxtable.com/samples/UDPWeb.rar



本节的任务是设计一个简单的订单查看网页,并可以修改和删除订单明细产品。网站的数据不是直接操作数据库获取的,而是通过和FoxtableUDPClient服务端进行通讯取得。



要实现网页和Foxtable的通讯,首先我们的先定义好通讯的格式。(虽然我们是可以把任何对象比如.NetDatatable序列化后进行UDP的传输,但不是本节讨论的话题,自定义传输格式的控制性更好,也减少了许多不必要的冗余信息。)



本示例定义传输的字符串的格式如下:

1)发送和返回的信息均以“%”符号开始和结束

2)查询的字符串以大写字母“G”开头

3)更新数据以大写字母“U”开头

4)删除数据以大写字母“D”开头

5)查询的返回值里主表和明细表的内容以“$”符号分割

6)明细表的多行内容以“@”符号分割

7)表内容多个字段名称和值以“|”符号分割


基本的原理就是网站服务器的ASP.NET程序收到客户通过网页提交的数据或命令后,通过UDP将其转给在同一台服务器的Foxtable程序,Foxtable处理完毕后将结果传给ASP.NET程序,ASP.NET再将结果呈现在客户的网页上。
不管是网页、微信、手机APP,还是任何第三方的软件,都可以通过这个方法和foxtable进行数据交互。
提示:本机程序使用UDP通讯的时候,必须使用IP“127.0.0.1”

1. 设计ASPNET网页

首先打开VS,创建一个ASP.NET网站的项目,默认就会生成一个起始页面Default.aspx。我们就在Default.aspx设计好页面的展示,如下图:

在订单编号框中输入订单编号,点击“查询”按钮,通过下面的代码获取订单内容:



        result = UDPCommunication("%G|" & orderNum & "%")



然后进行内容解析:



        If result IsNot Nothing Then

            If result.StartsWith("%") AndAlso result.EndsWith("%") Then

                Session("OrderNum") = orderNum '记录订单编号

                Dim orders() As String = result.Trim("%").Split("$") '分离主表和明细

                Dim orderdetails() As String = orders(0).Split("|")

                txtName.Value = orderdetails(0)

                txtOrderDate.Value = orderdetails(1)

                txtDeliverDate.Value = orderdetails(2)

                If orders.Length = 2 Then

                    If orders(1).StartsWith("@") AndAlso orders(1).EndsWith("@") Then

                        Dim detailArry() As String = orders(1).Trim("@").Split("@") '分离不同明细



                        For Each de As String In detailArry

                            Dim details() As String = de.Split("|")

                            Dim dr As DataRow

                            dr = order.NewRow()

                            For i As Integer = 0 To details.Length - 1

                                dr(i) = details(i) '定义的字段必须和返回值的字段顺序一致

                            Next

                            order.Rows.Add(dr)

                        Next

                    End If

                End If

            End If

        End If



这里定义一个函数来和FoxtableUDPClient进行通讯,如



Function UDPCommunication(ByVal input As String) As String

        Dim udp As New System.Net.Sockets.UdpClient(0)

        Dim ip As New System.Net.IPEndPoint(System.Net.IPAddress.Parse("127.0.0.1"), 52177) '定义通讯的网络端点,地址和端口号要和和UDPClient启动时的一致



        Dim bytes() As Byte = System.Text.Encoding.Unicode.GetBytes(input)

        udp.Send(bytes, bytes.Length, ip) '发送数据

        Dim result As String = "!false"

        Dim sdt As Date = Date.Now

        While Date.Now < sdt.AddSeconds(1) '1

            If udp.Available > 0 Then

                Dim remoteIp As New System.Net.IPEndPoint(System.Net.IPAddress.Any, 0)

                Dim rbytes() As Byte = udp.Receive(remoteIp)

                result = System.Text.Encoding.Unicode.GetString(rbytes) '获取返回值

            End If

        End While

        udp.Close()

        Return result

    End Function



比如输入订单编号31,查询完成后的页面如下:



在明细中点击删除,就可以删除一条明细,代码如下



        Dim numCell As TableCell = e.Item.Cells(2)

        Dim num As String = numCell.Text

        Dim result As String = UDPCommunication("%D|订单编号|" & Session("OrderNum").ToString() & "|产品代码|" & num & "%")

        If result = "!false" Then

            p1.InnerText = "删除产品" & e.Item.Cells(3).Text & "出错!"

        Else

            orderView.RowFilter = "产品代码='" & num + "'"

            If orderView.Count > 0 Then

                orderView.Delete(0)

            End If

        End If

        orderView.RowFilter = ""

        BindGrid()



同样,编辑的情况也类似,具体参考示例的VS项目。

2. FoxtableUDPClient服务器端设计

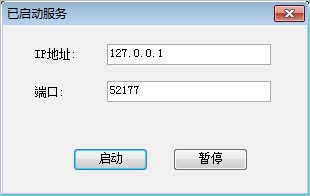

2.1 设计一个下图所示的窗口:





窗口中启东按钮的代码为:



If UDPClients.Count = 0 Then

    UDPClients.Add("UDP1",new UDPClient("UDP1") )

End If

UDPClients("UDP1").IP = e.Form.Controls("txtIP").Value

UDPClients("UDP1").Port = e.Form.Controls("txtPort").Value

UDPClients("UDP1").Start()



2.2 在菜单的管理项目功能区,单击网络监视器,设置UDPClientReceivedMessage事件代码:



Dim drnew As Row = Tables("通讯记录").AddNew()

drnew("接收时间") = now

drnew("接收内容") = e.Message

Dim msg As String = e.Message

Dim ret As String = "!false"



If e.Message.StartsWith("%") AndAlso e.Message.EndsWith("%"'假定收到的信息头尾都是"%"

    msg  = msg.Trim("%")

    Dim prefix As String = msg.SubString(0,1)

    Select Case prefix

        Case "G" '查询

            msg = msg.TrimStart("G","|")

            Dim dr As DataRow = DataTables("订单").Find("订单编号 = '" & msg & "'")

            If dr IsNot Nothing Then

                ret = "%" & dr("客户名称") & "|" & dr("订单日期") & "|"  & dr("发货日期")'拼接主表字段内容



                Dim drs As List(Of DataRow)

                drs = dr.GetChildRows("订单明细")

                If drs.Count > 0 Then

                    ret = ret & "$" '分割主表和明细

                    For Each dr1 As DataRow In drs

                        ret = ret & "@" & dr1("产品代码") & "|" & dr1("产品名称") & "|" & dr1("数量") & "|" & dr1("单位") & "|" & dr1("单价")'拼接每一行明细的字段内容,必须和网页中定义的列顺序一致

                    Next

                    ret = ret & "@"

                End If



                ret &= "%"

            End If

        Case "U" '更新

            msg = msg.TrimStart("U","|")

            Dim dataArray() As String = msg.Split("|")

            If dataArray.Length = 8 Then

                Dim dr As DataRow = DataTables("订单明细").Find( dataArray(0) & " = '" & dataArray(1) & "' and " & dataArray(2) & " = '" & dataArray(3) & "'")

                If dr IsNot Nothing Then '接收的内包含列名称和列值,这样就不用判断是更新那一列

                    dr(dataArray(4)) = dataArray(5)

                    dr(dataArray(6)) = dataArray(7)

                    DataTables("订单明细").Save()

                    ret = "!true"

                End If

            End If

        Case "D" '删除

            msg = msg.TrimStart("D","|")

            Dim dataArray() As String = msg.Split("|")

            If dataArray.Length = 4 Then

                Dim dr As DataRow = DataTables("订单明细").Find( dataArray(0) & " = '" & dataArray(1) & "' and " & dataArray(2) & " = '" & dataArray(3) & "'")

                If dr IsNot Nothing Then

                    dr.Delete()

                    ret = "!true"

                    DataTables("订单明细").Save()

                End If

            End If

        Case Else

    End Select

    drnew("发送内容") = ret

    e.ReturnValue = ret

    drnew("发送时间") = now

End If

drnew.Save()



代码比较简单,就不多做解释了。
