有关调用实时(JIT)调试而不是此对话框的详细信息，

请参见此消息的结尾。

************** 异常文本 **************

System.ArgumentException: 列“sys_Hierarchy_Level”不属于表 BOM查看_Table1。

在 System.Data.DataRow.GetDataColumn(String columnName)

在 System.Data.DataRow.IsNull(String columnName)

在 Foxtable.Row.get_Item(String ColumnName)

在 Foxtable.Row.get_HasChild()

在 Foxtable.OO__O_o_oO00_.O.__OO_o__oO0.(Object A_0, OwnerDrawCellEventArgs A_1, Boolean A_2, Boolean A_3, Boolean& A_4)

在 Foxtable.OO__O_o_oO00_.oOo0ooOo.0_.(Object A_0, OwnerDrawCellEventArgs A_1)

在 C1.Win.C1FlexGrid.C1FlexGridBase.OnOwnerDrawCell(OwnerDrawCellEventArgs e)

在 C1.Win.C1FlexGrid.C1FlexGridBase.#gdb(OwnerDrawCellEventArgs #tQ)

在 C1.Win.C1FlexGrid.C1FlexGridBase.#fdb(Graphics #AA, Int32 #j, Int32 #l, Style #aE, Rectangle #o5, String #gM, String #yxd, Int32 #xEu, Image #Ak, Sparkline #fmh)

在 C1.Win.C1FlexGrid.C1FlexGridBase.DrawCell(Graphics #AA, Int32 #j, Int32 #l, Style #aE, Rectangle #o5, String #gM, String #yxd, Int32 #xEu, Image #Ak, CheckEnum #bdb, Sparkline #fmh)

在 C1.Win.C1FlexGrid.C1FlexGridBase.DrawCell(PaintEventArgs e, Int32 row, Int32 col)

在 C1.Win.C1FlexGrid.C1FlexGrid.DrawCell(PaintEventArgs e, Int32 row, Int32 col)

在 C1.Win.C1FlexGrid.C1FlexGrid.DrawRow(PaintEventArgs e, Int32 row)

在 C1.Win.C1FlexGrid.C1FlexGridBase.#adb(PaintEventArgs #tQ)

在 C1.Win.C1FlexGrid.C1FlexGridBase.OnPaint(PaintEventArgs e)

在 System.Windows.Forms.Control.PaintWithErrorHandling(PaintEventArgs e, Int16 layer)

在 System.Windows.Forms.Control.WmPaint(Message& m)

在 System.Windows.Forms.Control.WndProc(Message& m)

在 C1.Win.C1FlexGrid.Util.BaseControls.ScrollableControl.WndProc(Message& m)

在 System.Windows.Forms.Control.ControlNativeWindow.OnMessage(Message& m)

在 System.Windows.Forms.Control.ControlNativeWindow.WndProc(Message& m)

在 System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)

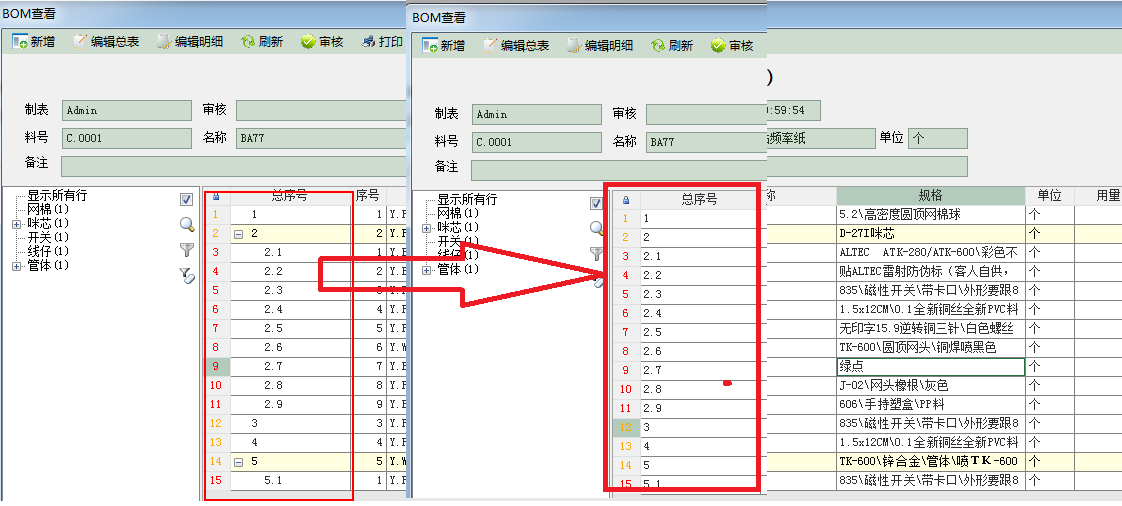

如以下代码加载进来的数据BOM文件。第一次加载是没有问题的。加载完成后，如果再点击加载就会出现以上蓝色字体的错误

MessageBox.Show(3）可以正常显示，之后就会出现上面的提示错误，点击继续后才可以出现MessageBox.Show(2)

Dim Wlid As Integer = e.Form.Controls("TextWlid").text

Dim cmd As New SQLCommand

cmd.C

Dim tb As Table = Tables(e.Form.Name & "_Table1")

Dim dt As DataTable = tb.DataTable

'If dt.DataRows.Count > 0 Then dt.DataRows.Clear

MessageBox.Show(3)

cmd.CommandText = "se lect * from {BOMMX} where [fjid] = " & wlid

tb.DataSource = cmd.ExecuteReader

MessageBox.Show(2)

If dt.DataCols.Contains("Zsn") = False Then dt.DataCols.Add("Zsn", GetType(String), 255)

If dt.DataCols.Contains("总序号") = False Then dt.DataCols.Add("总序号", GetType(String), 255)

If dt.DataCols.Contains("投产量") = False Then dt.DataCols.Add("投产量", GetType(Single))

For Each dr As DataRow In dt.DataRows

dr("zsn") = Format(dr("序号"), "000")

dr("总序号") = dr("序号")

dr("投产量") = dr("用量")

cmd.CommandText = "sele ct * from {BOMMX} where [fjid] = " & dr("wlid")

' MessageBox.Show(cmd.CommandText)

Dim vdt As DataTable = cmd.ExecuteReader

If vdt.DataRows.Count > 0 Then

Functions.Execute("BOM_Expand", dt, dr("wlid"), dr("zsn"), dr("总序号"), dr("用量") )

End If

tb.SetColVisibleWidth("总序号|120|序号|36|料号|153|旧料号|153|名称|144|规格|189|单位|49|用量|70|投产量|70|Note|246")

dt.dataCols("Note").Caption = "备注"

dt.BuildHeader

dt.DataCols.Add("sl", GetType(Integer), "[Itid] / [Itid]")

tb.Sort = "zsn"

Exit Sub

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Dim trv As WinForm.LayersTree = e.Form.Controls("LayersTree1")

Dim st As New LayerTreeSetting

st.PathCol = "总序号"

st.TextCol = "名称"

st.ValueCol = "sl"

st.Separator = "."

'st.SortCol = "Zsn"

st.GridTree = True

st.Subtotal = True

st.UseStyle = True

st.GridTree = True

st.ExpandTo = -1

trv.BuildBomTree(Tb, st)

tb.ShowGridTree(st)

"BOM_Expand" 内部函数代码如下。

Dim cmd As new SQLCommand

cmd.C

Dim dt As DataTable = args(0)

cmd.CommandText = "sel ect * from {BOMMX} where [fjid] = " & args(1)

Dim vdt As DataTable = cmd.ExecuteReader

If vdt.DataRows.Count > 0 Then

For Each vdr As DataRow In vdt.DataRows

Dim nr As DataRow = dt.AddNew

For Each dc As DataCol In vdt.DataCols

nr(dc.Name) = vdr(dc.Name)

nr("zsn") = args(2) & "." & Format(vdr("序号"),"000")

nr("总序号") = args(3) & "." & vdr("序号")

nr("投产量") = args(4) * nr("用量")

Functions.Execute("BOM_Expand",dt,nr("wlid"),nr("zsn"),nr("总序号"),nr("投产量"))

End If
