LISTVIEW平铺外框怎么做？ - 专家坐堂 - Foxtable(狐表) - 新一代数据库软件，完美融合Access、Foxpro、Excel、vb.net之优势，人人都能掌握的快速软件开发工具!

Dim lvw As WinForm.ListView = e.Form.Controls("ListView1")

lvw.StopRedraw() '暂停绘制

lvw.Rows.Clear() '清除原来的行

lvw.Images.Clear() '清除原来的图片

lvw.View = ViewMode.Tile '显示模式为平铺

lvw.Images.LargeSize = New Size(65,75) '定义大图标尺寸

lvw.TitleSize = New Size(150,90) '设置平铺区域的大小

Dim cls() As String = {"编号","姓名","部门","职务","性别"} '定义列名

For i As Integer = 0 To cls.Length - 1 '增加列

Dim c As WinForm.ListViewColumn = lvw.Columns.Add()

c.Name = cls(i) '指定列名

For Each dr As DataRow In DataTables("员工").DataRows '从数据表中提取数据

Dim Key As String = dr("照片") '获取此员工的照片文件

lvw.Images.AddLargeImage(Key, Key) '添加照片,直接用文件名作为图片键值

Dim vr As WinForm.ListViewRow = lvw.Rows.Add() '增加一行

vr.ToolTipText = dr("备注") '设置此行的动态提示

vr.ImageKey = Key '设置图片键值

For Each cl As String In cls '逐列取值

vr(cl) = dr(cl)


lvw.ResumeRedraw() '恢复绘制

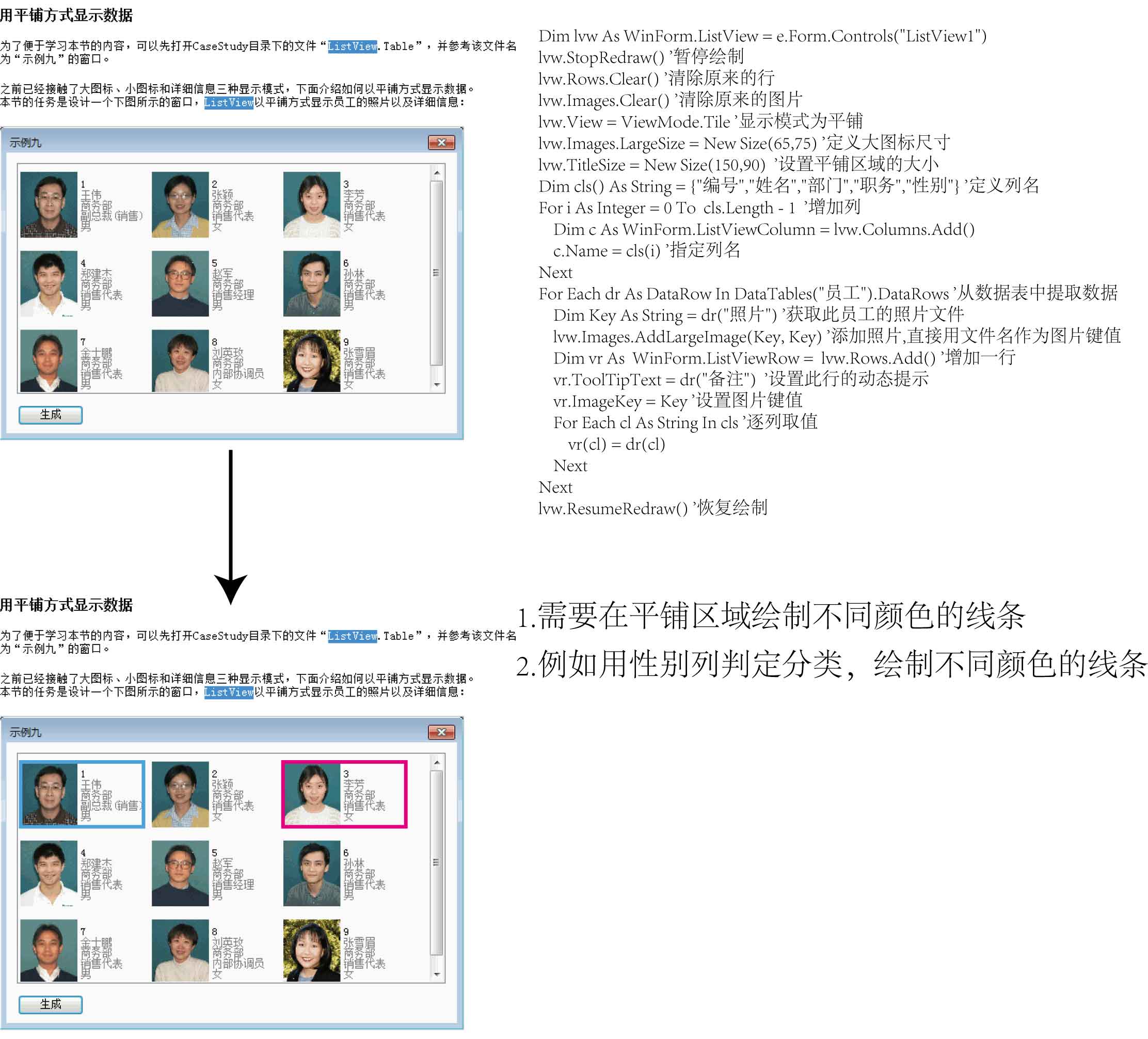

请问各位大神这个怎么编写？需要绘制线条，颜色是按某列来指定变化

全局代码

Public Sub listView1_DrawItem(ByVal sender As Object, ByVal e As Windows.forms.DrawListViewItemEventArgs)

Dim n As New Pen(Color.Red,2)
Dim rect As new Rectangle(e.Bounds.left-1, e.Bounds.top-1, e.Bounds.width-2, e.Bounds.height-2)
e.Graphics.DrawRectangle(n, e.Bounds)
e.Graphics.DrawImage(sender.LargeImageList(e.Item.ImageIndex), rect)

End Sub

生成代码

Dim lvw As WinForm.ListView = e.Form.Controls("ListView1")
Dim blvw As windows.Forms.Listview = lvw.basecontrol
blvw.OwnerDraw = True
addhandler blvw.DrawItem, addressof listView1_DrawItem

谢谢大神，但是这个颜色数固定红色的吗？比如我表A有一列为颜色，里面有不同的颜色，RED,YELLOW等等，可以定义进去吗？小白麻烦大神了

参考代码

Public Sub listView1_DrawItem(ByVal sender As Object, ByVal e As Windows.forms.DrawListViewItemEventArgs)

If e.item.SubItems("性别").text = "男" Then
    Dim n As New Pen(Color.Red,2)
    e.Graphics.DrawRectangle(n, e.Bounds)
Else
    Dim n As New Pen(Color.yellow,2)
    e.Graphics.DrawRectangle(n, e.Bounds)
End If
Dim rect As new Rectangle(e.Bounds.left-1, e.Bounds.top-1, e.Bounds.width-2, e.Bounds.height-2)
e.Graphics.DrawImage(sender.LargeImageList(e.Item.ImageIndex), rect)

End Sub

主题：LISTVIEW平铺外框怎么做？
